Trailer Wheel Tire Assembly

Trailer Wheel Tire Assembly

4.80x12 4lugs Steel Wheel and Tire Assembly

Product Details

Tire Size 4.80×12

Tire Type: Bias

Weight Capacity 990 lb

Maximum Pressure 90 psi

Outside Diameter 20.5 in

Section width: 4.6”

Bolt Pattern: 5 on 4.5”

Center Bore: 3.19”

Approx. Weight: 24 LBS

4.80x12 5lugs Steel Wheel and Tire Assembly

Product Details

Tire Size 4.80×12 5lugs

Tire Type: Bias

Weight Capacity 990 lbs

Maximum Pressure 90 psi

Outside Diameter 20.5 in

Section width: 4.6”

Bolt Pattern: 5 on 5”

Center Bore: 3.19”

Approx. Weight: 24 LBS

5.30x12 4lugs Steel Wheel and Tire Assembly

Product Details

Tire Size 5.30×12

Tire Type: Bias

Weight Capacity 1050 lb

Maximum Pressure 80 psi

Outside Diameter 21.5 in

Section width: 5.4”

Bolt Pattern: 4 on 4”

Center Bore: 2.89”

Approx. Weight: 24 LBS

5.30x12 5lugs Steel Wheel and Tire Assembly

Product Details

Tire Size 5.30×12

Tire Type: Bias

Weight Capacity 1050 lb

Maximum Pressure 80 psi

Outside Diameter 21.5 in

Section width: 5.4”

Bolt Pattern: 5 on 4.5”

Center Bore: 3.19”

Approx. Weight: 24 LBS

ST205/75D15 Wheel and Tire Assembly 5lugs 4.5"

Product Details

Size: ST205/75D15

Tire Tipe: Bias

Ply: 6 Ply

Maximum Pressure 50 psi

Tire Capacity: 1820

Outside Diameter 27.1 in

Tread Pattern 10/32

Weight Capacity 1,860 lb

Approx. Weight: 22 LBS

Wheel Type:

Diameter: 15 inch.

Capacity: 2,200 LBS.

Center Bore: 3.19 inch.

Bolt Pattern: 5/4.5.

Offset: 0.

Finish: Powder coat.

Approx. Weight: 20 LBS

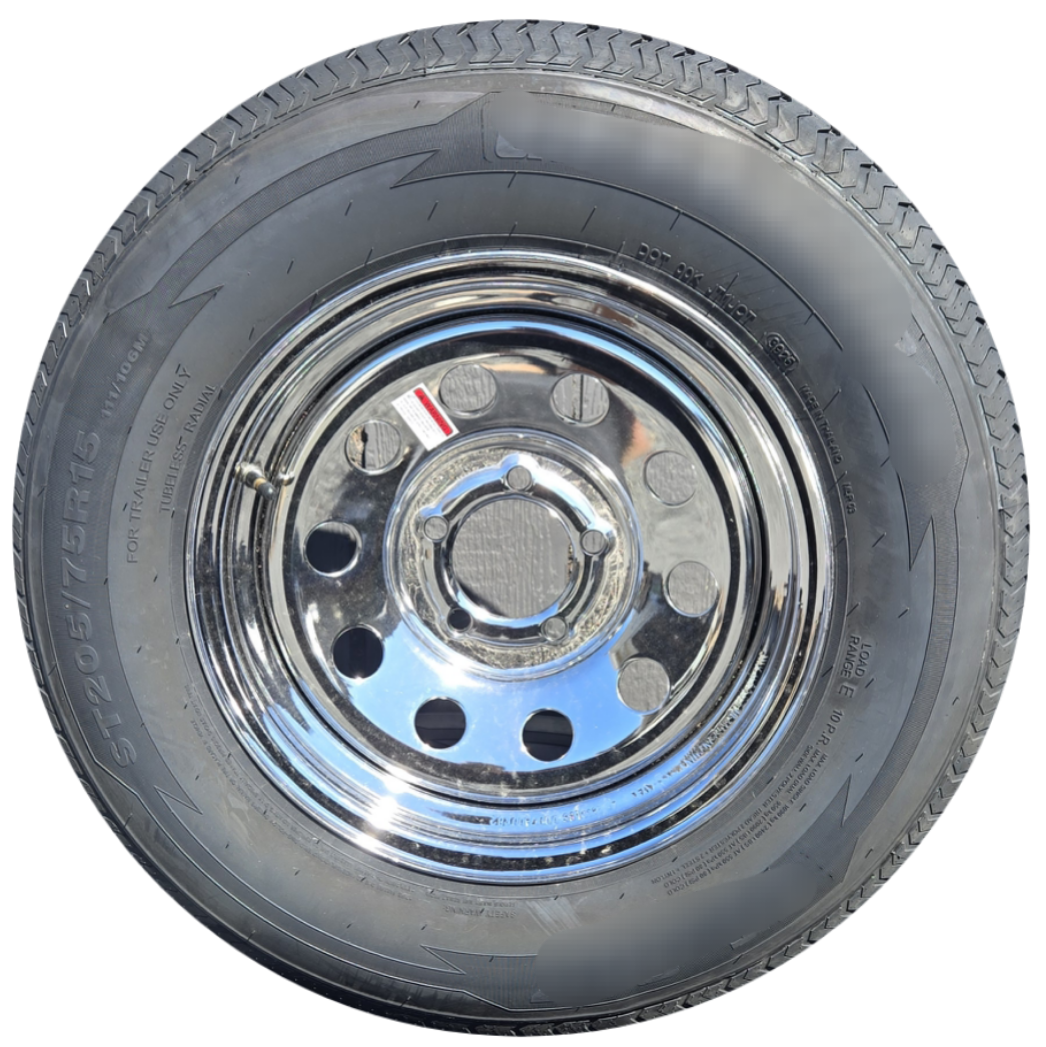

ST205/75R15 Wheel and Tire Assembly 5lugs 4.5"

Product Details

Size: ST205/75R15

Tire Type: Radial

Maximum Pressure 65 psi

Outside Diameter 27.13 in

Load Capacity: D/8 Ply

Weight Capacity 2,150 lb

Approx. Weight: 24 LBS

Wheel Type:

Diameter: 15 inch.

Capacity: 2,200 LBS.

Center Bore: 3.19 inch.

Bolt Pattern: 5/4.5.

Offset: 0.

Finish: Powder coat.

Approx. Weight: 20 LBS

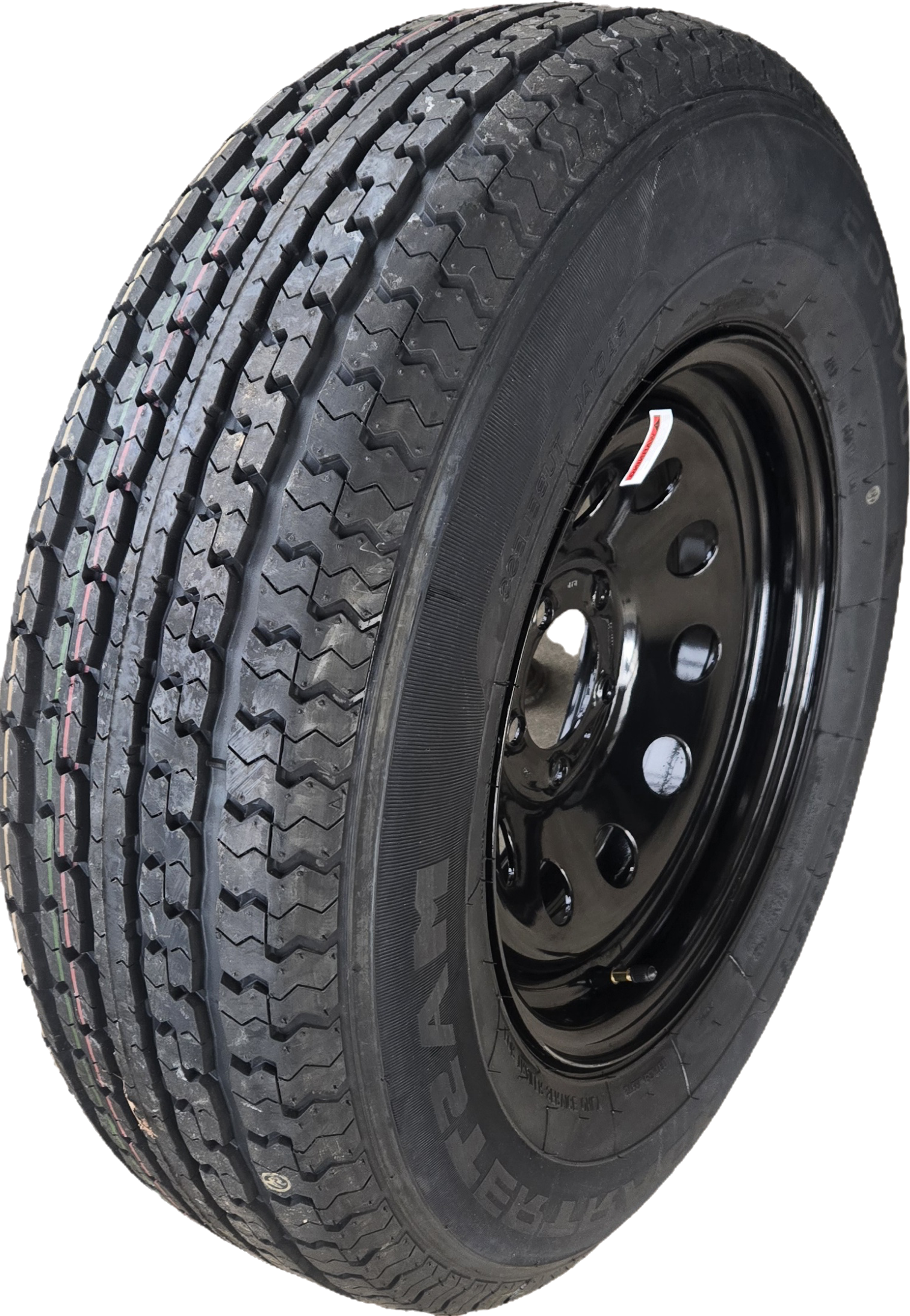

ST225/75R15 Wheel and Tire Assembly 6lugs 5.5"

Product Details

Size: ST225/75R15

Tire Type: Radial

Tire Capacity: 2,860 LBS

Max Air Pressure: 80 Psi

Overall Diameter: 28.3”

Section Width: 8.8”

Speed Rating: M/81 MPH

Load Raiting: E/10 Ply

Approx Weight: 30 LBS

Wheel Type:

15×6 6/5.5
Specs:


Wheel Type: Steel.
Diameter: 15 inch.

Capacity: 2,860 LBS.

Center Bore: 4.25 inch.

Bolt Pattern: 6/5.5

Offset: 0.

Finish: Powder coat.

Approx Weight: 20 LBS

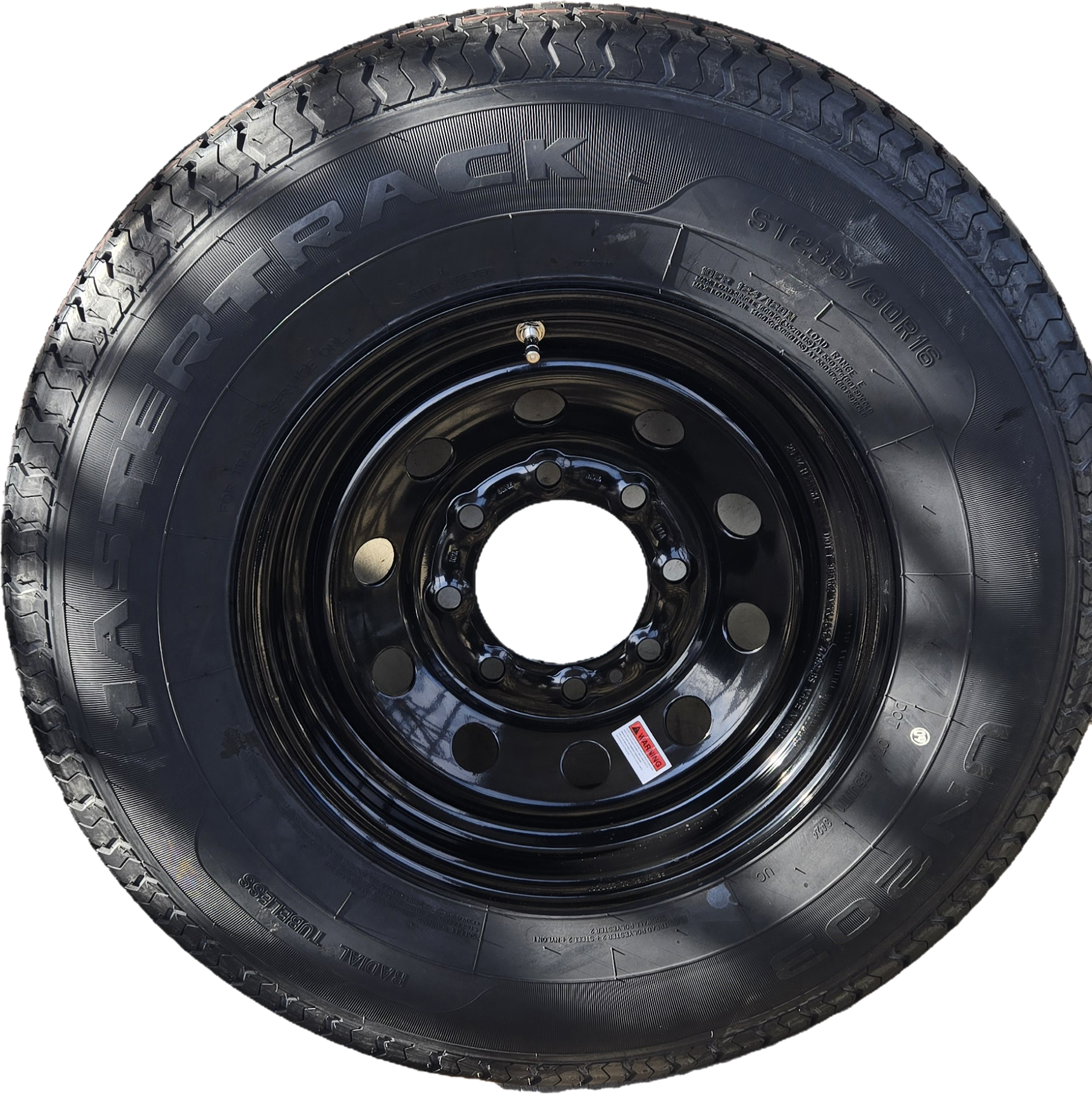

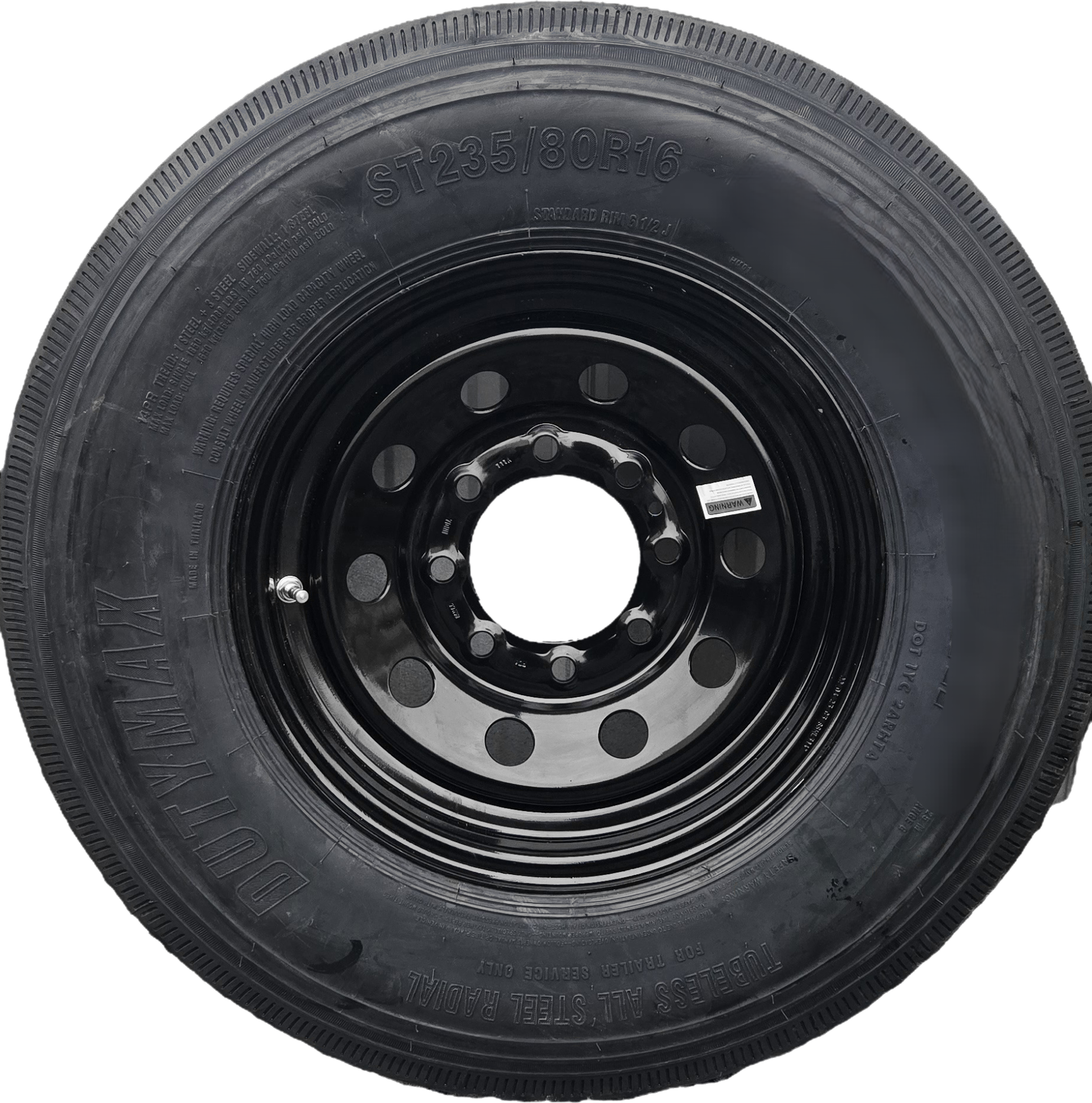

ST235/80R16 Wheel and Tire Assembly 8lugs 6.5"

Product Details

Size: ST235/80R16

Tire Type: Radial

Tire Capacity: 3,520 LBS

Max Air Pressure: 81 Psi

Overall Diameter: 30.8”

Section Width: 9.3”

Speed Rating: M/81 MPH

Load Rating: E/10 Ply

Approx. Weight: 33 LBS

Wheel Type:

16×6HD 8/6.5
Specs:


Wheel Type: Steel.
Diameter: 16 inch.

Capacity: 3750 LBS.

Center Bore: 4.90inch.

Bolt Pattern: 8/6.5

Offset: 0.

Finish: Powder coat.

Approx. Weight: 24 LBS

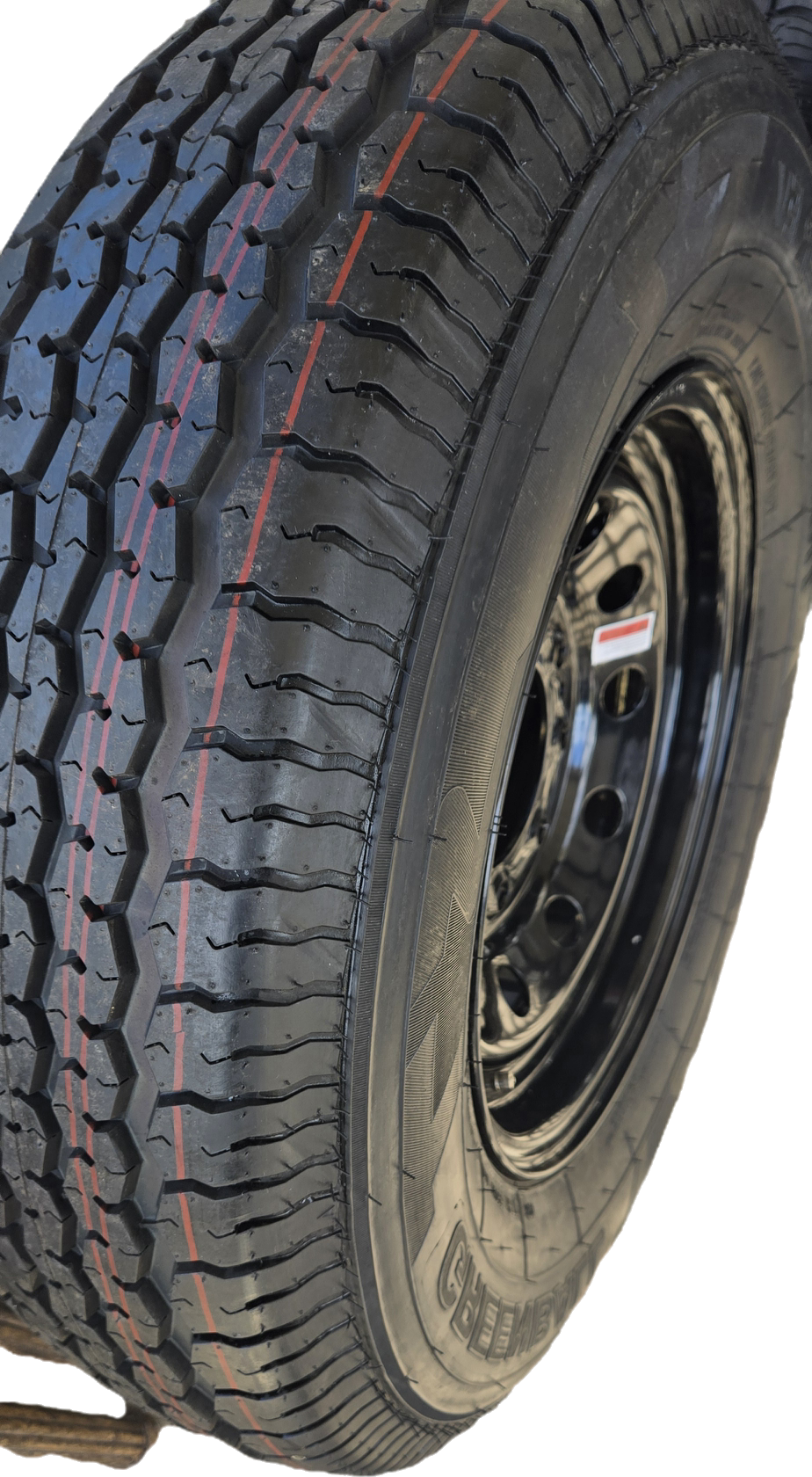

ST235/80R16 Wheel and Tire Assembly 8lugs 6.5"

Product Details

Size: ST235/80R16

Tire Type: Radial

Tire Capacity: 4,080 LBS

Max Air Pressure: 110 Psi

Overall Diameter: 30.8”

Section Width: 9.3”

Speed Rating: M/81 MPH

Load Rating: G/14 Ply

Approx. Weight: 55 LBS

Wheel Type:

16×6HD 8/6.5
Specs:

Wheel Type: Steel.

Diameter: 16 inch.

Capacity: 4480 LBS.

Center Bore: 4.90inch.

Bolt Pattern: 8/6.5

Offset: 0.

Finish: Powder coat.

Approx. Weight: 24 LBS

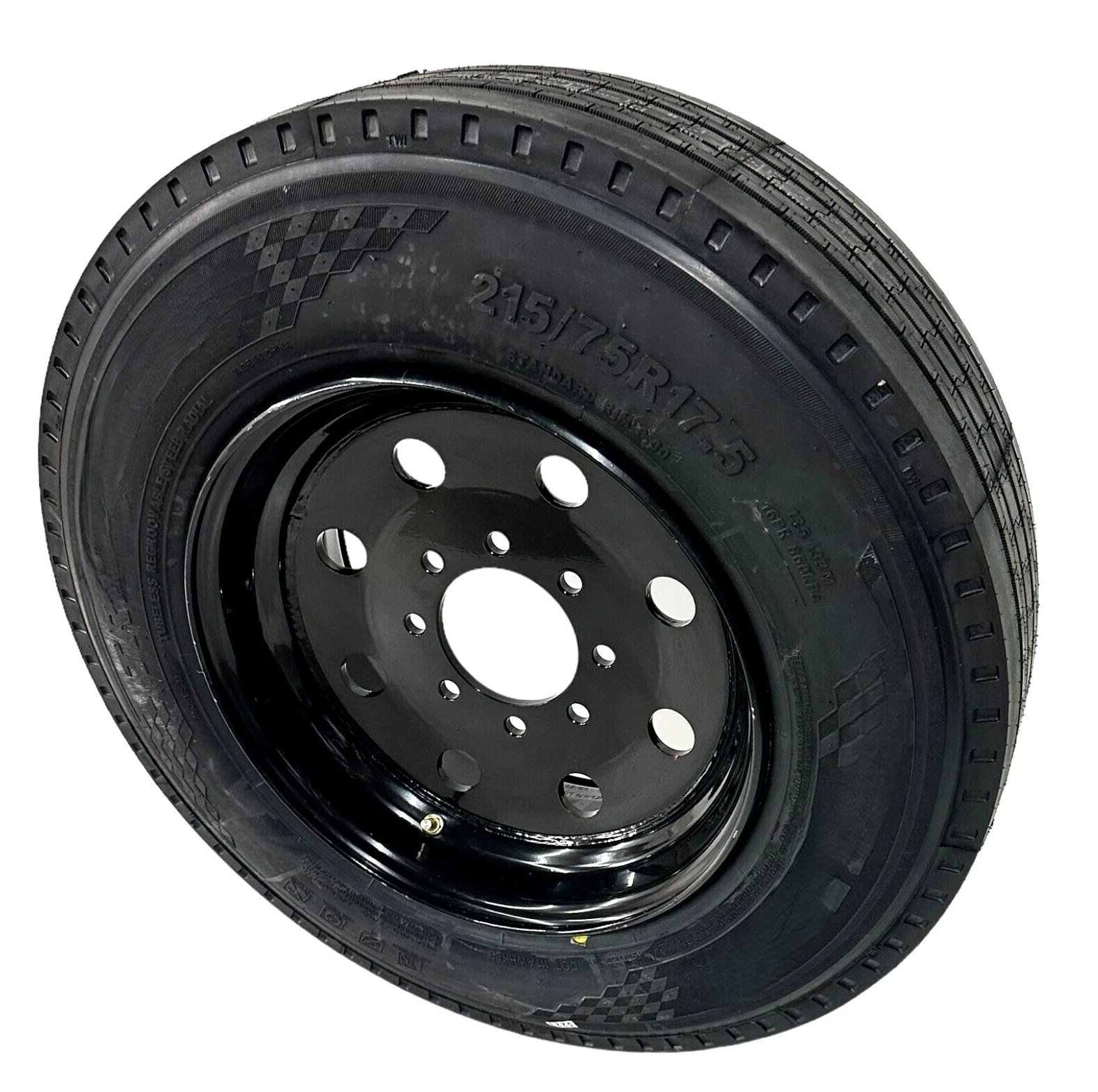

215/75R17.5 Wheel and Tire Assembly

Product Details

Tire Size: 215/75R17.5

Tire Type: Radial

Weight Capacity 6,005 lb

Maximum Pressure 125 psi

Outside Diameter 31.2“

width: 8.3”

Speed Rating: M/81MPH

Load Rating: J/18Ply

Center Bore: 4.77”

Bolt Pattern: 8/6.5

Offset: 0.50

Finish: Powder Coat

Approx. Weight: 50 LBS

Wheel Type:

Diameter: 17.5 inch.

Capacity: 6005 LBS.

Center Bore: 4.77inch.

Bolt Pattern: 8/6.5

Offset: 0.

Finish: Powder coat.

Approx. Weight: 48 LBS
