Our replacement self-adjusting electric brake assemblies are easier to install than hydraulic brakes, and you never have to manually adjust them after the initial adjustment. These brakes self-adjust during every forward stop, providing up to 50% shorter stopping distance and preventing premature brake lining and magnet wear.

• Item #:296649/296650

• Brand: Lippert

• Shock Compatible: No

• Brake Type: Forward Self Adjusting Electric

• Axle Brake Mounting Bolt Size: 7/16"

• Axle Capacity: 3,500 lbs.

• Brake Size: 10" x 2.25"

• Brake Flange Count: 4-Bolt

• Hardware Type: Brake Assembly

• Side: Passenger (Right)296650 or (Left)296649

• Unit of Measure: EA

• Quantity In Package: 1

• Package Type: Retail Box

• Universal Part: No Fitment

• Shipping Dimensions: 12" L x 12" W x 3.5" H

• Weight: 11.00

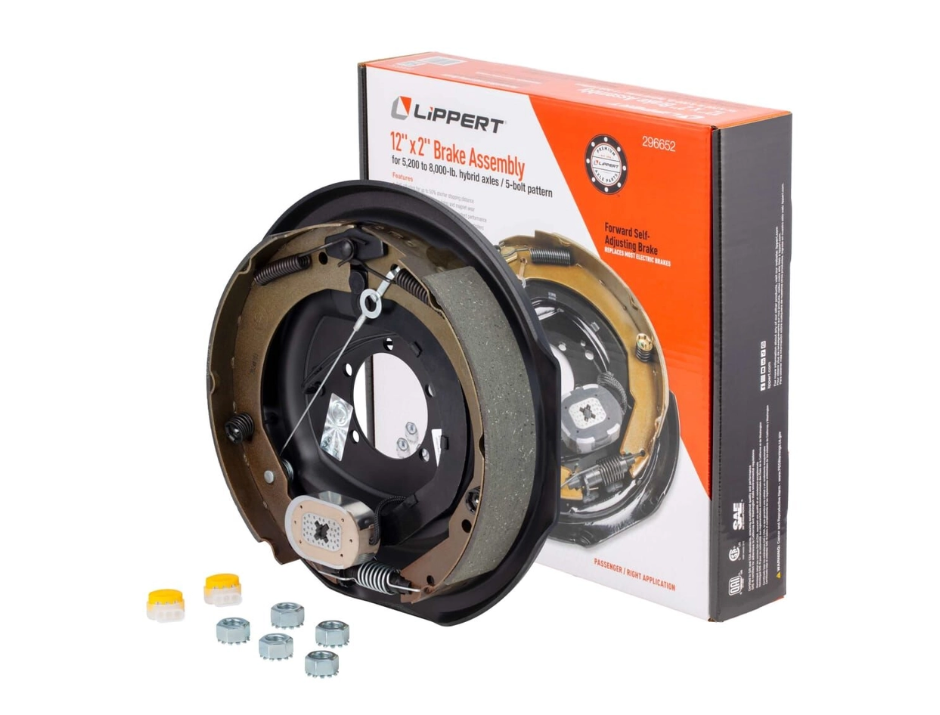

Our replacement self-adjusting electric brake assemblies are easier to install than hydraulic brakes, and you never have to manually adjust them after the initial adjustment. These brakes self-adjust during every forward stop, providing up to 50% shorter stopping distance and preventing premature brake lining and magnet wear.

• Item #:296651/296652

  • Brand: Lippert

  • Weight Capacity: 7,000 lbs.

  • Brake Type: Forward Self Adjusting Electric

  • Axle Brake Mounting Bolt Size: 3/8"

  • Axle Capacity: 5,200 lbs., 6,000 lbs., 7,000 lbs.

  • Brake Size: 12" x 2"

  • Brake Flange Count: 5-Bolt

  • Hardware Type: Brake Assembly

  • Side: Passenger (Right)296652 or (Left)296651

  • Outer Diameter: 0.6875"

  • Unit of Measure: EA

  • Warranty Term: 1 Year

  • Quantity In Package: 1

  • Package Type: Retail Box

  • Universal Part: Yes

  • Manufacturer Reference Number: 1224513

  • Supersedes SKU: 1224514,2023067986,1224513

  • Reference Vendor/Manufacturer Name: Lippert

  • Dexter Compatible Part Number: K23-465-00

  • UPC: 848150002358

  • Shipping Dimensions: 14.5" L x 14" W x 3" H, 13 lbs.
